BuggyTechnical Breakdown
A deep-dive breakdown of the Buggy hero prop — covering topology, UV layout, PBR texturing, and Marmoset rendering.
BlenderSubstance 3D PainterMarmoset ToolbagPhotoshop
Image Gallery
Detailed Shots
Project Overview
About This Work
About This Project
A focused breakdown of the Buggy project — documenting the full modelling and texturing pipeline from initial blockout to final Marmoset render.

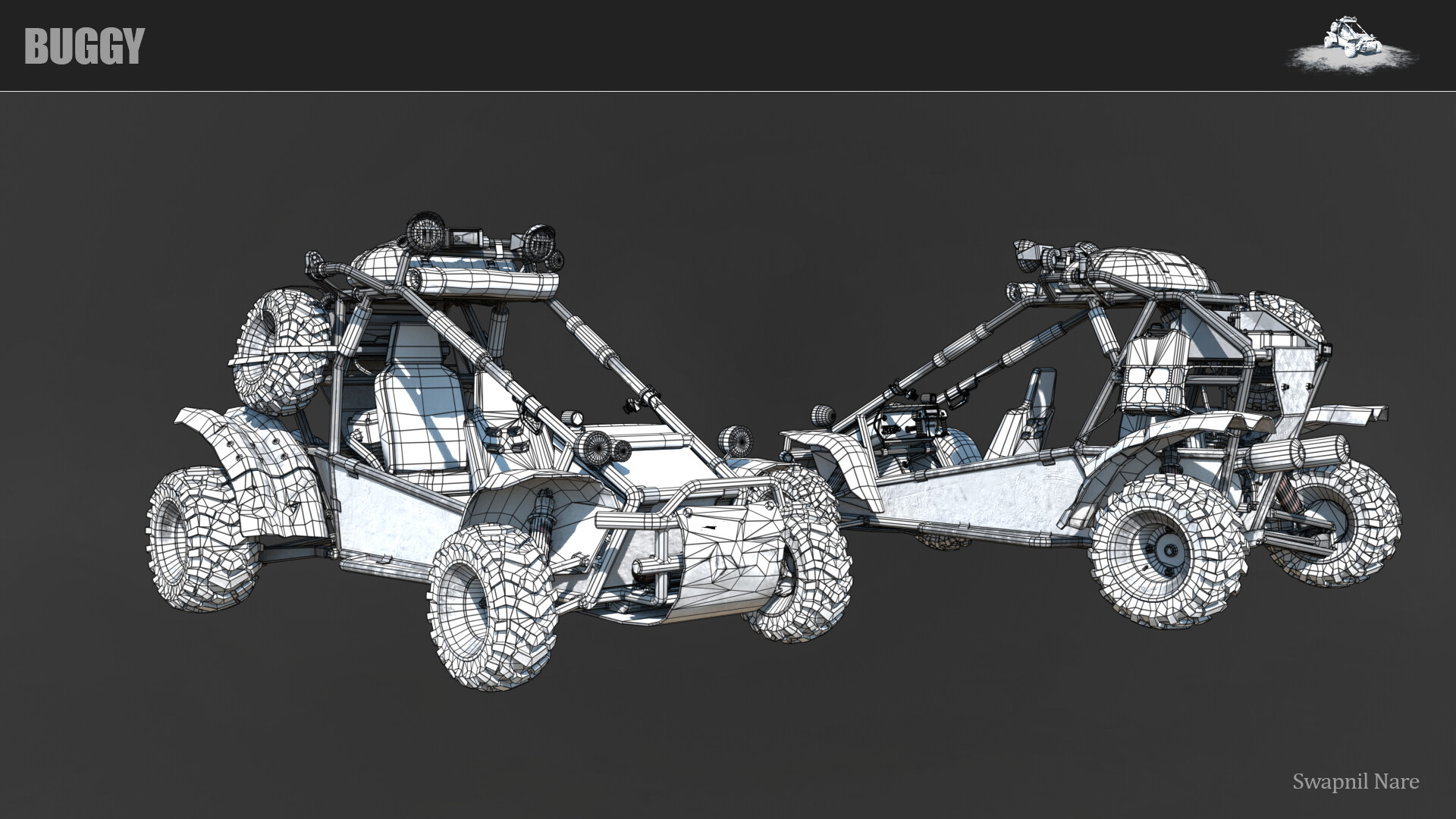

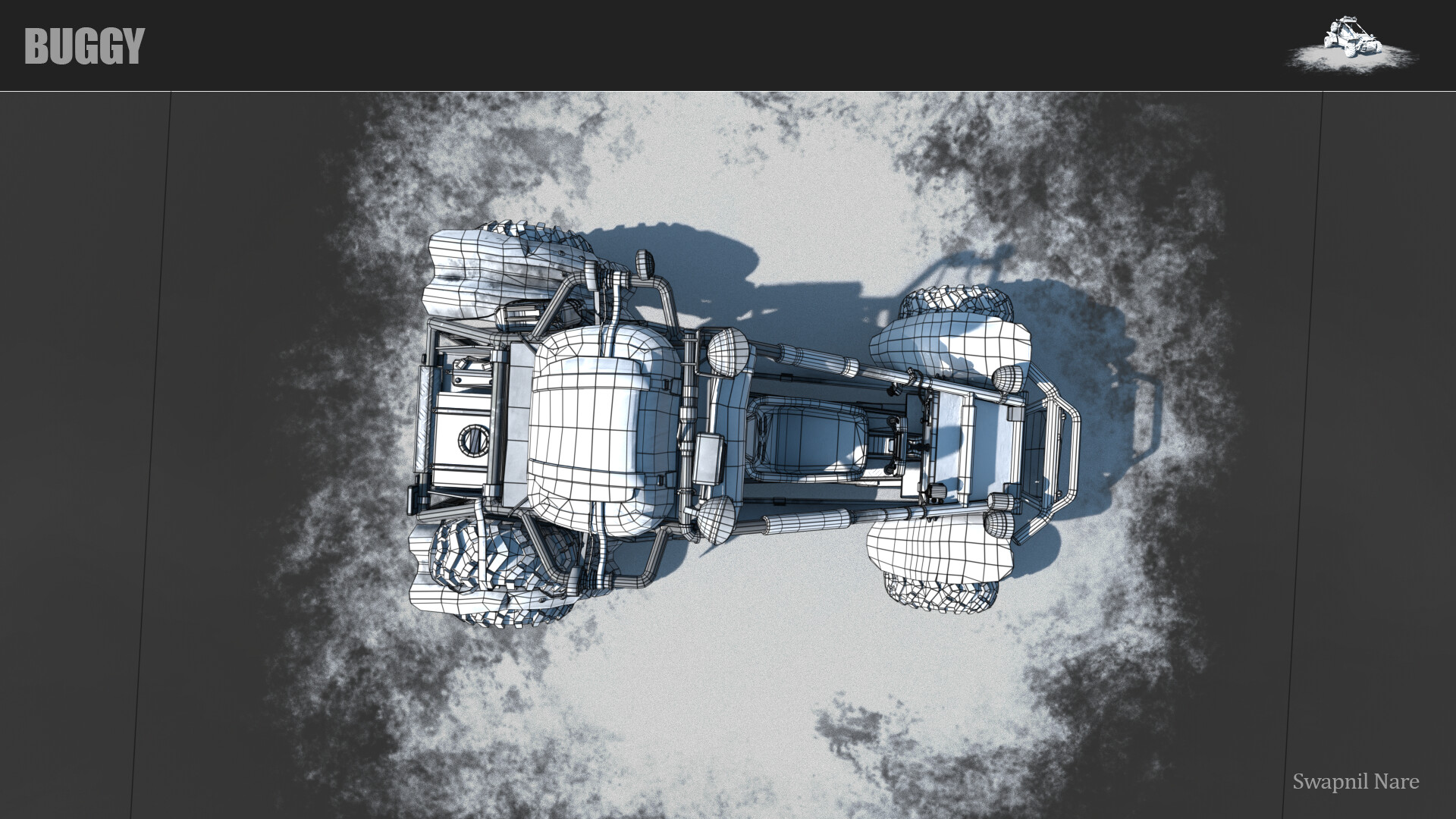

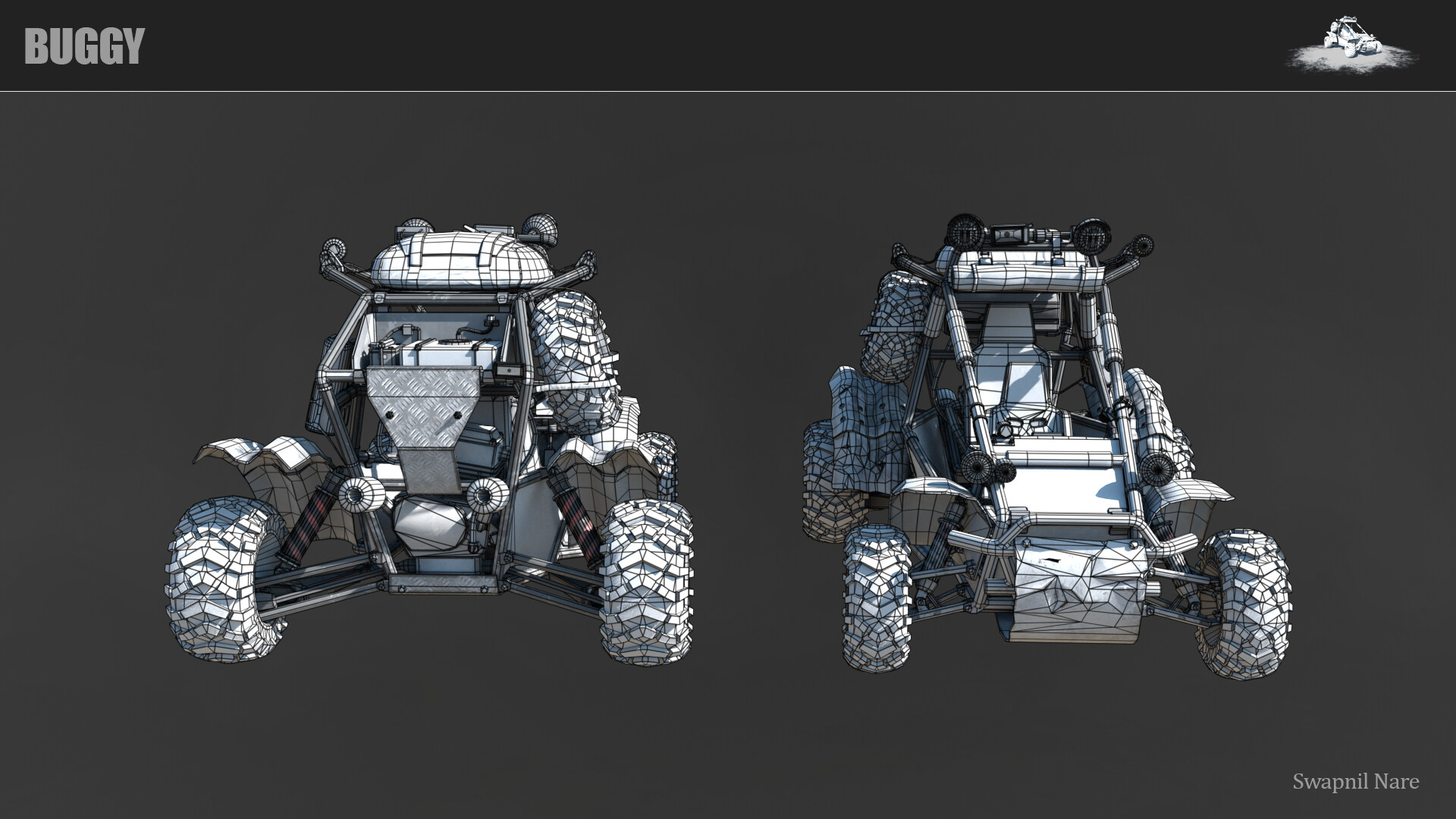

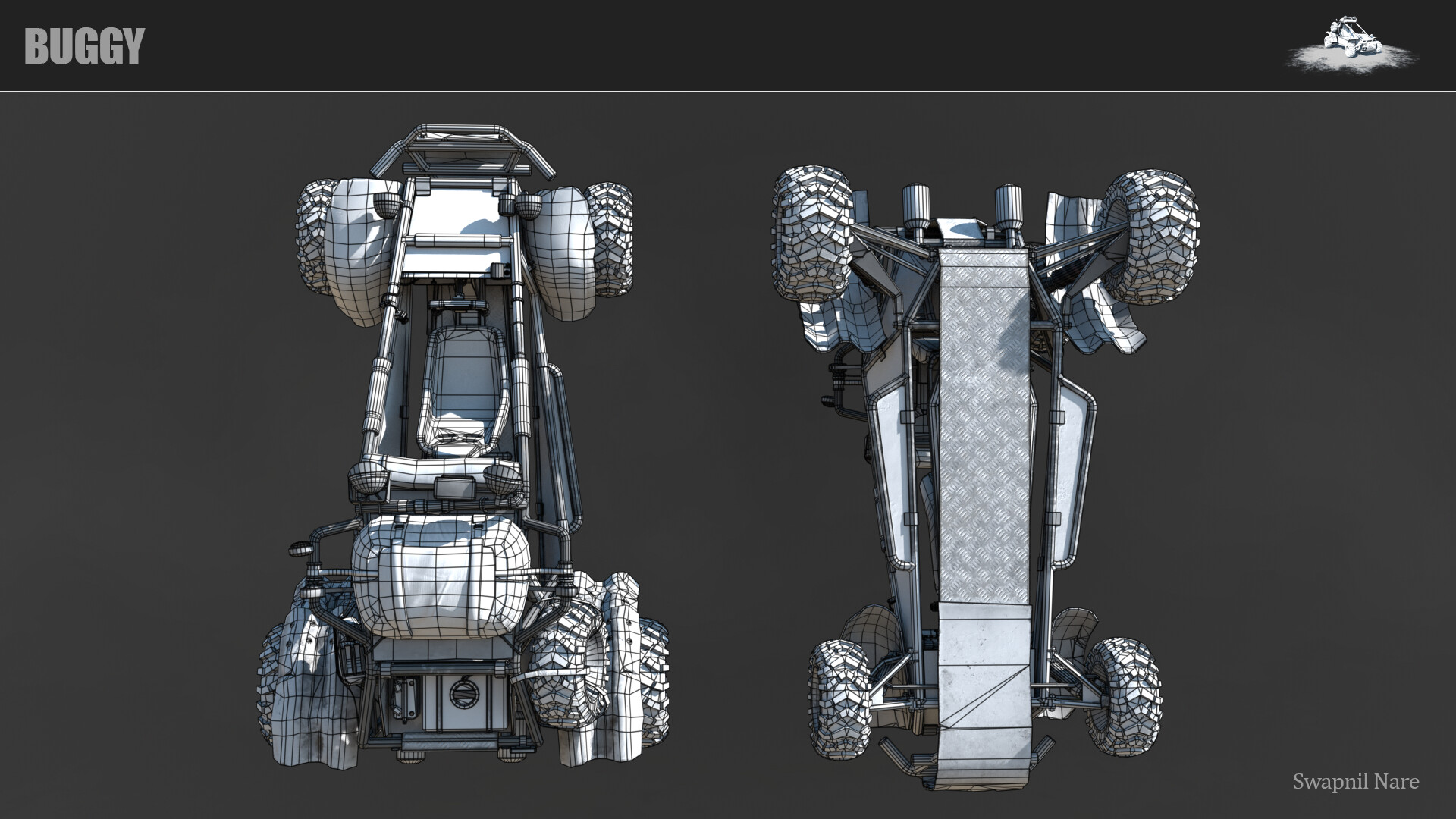

Topology was constructed with production intent: clean edge flow, appropriate polygon density, and UV islands packed efficiently across 8 × 2048 texture sets.

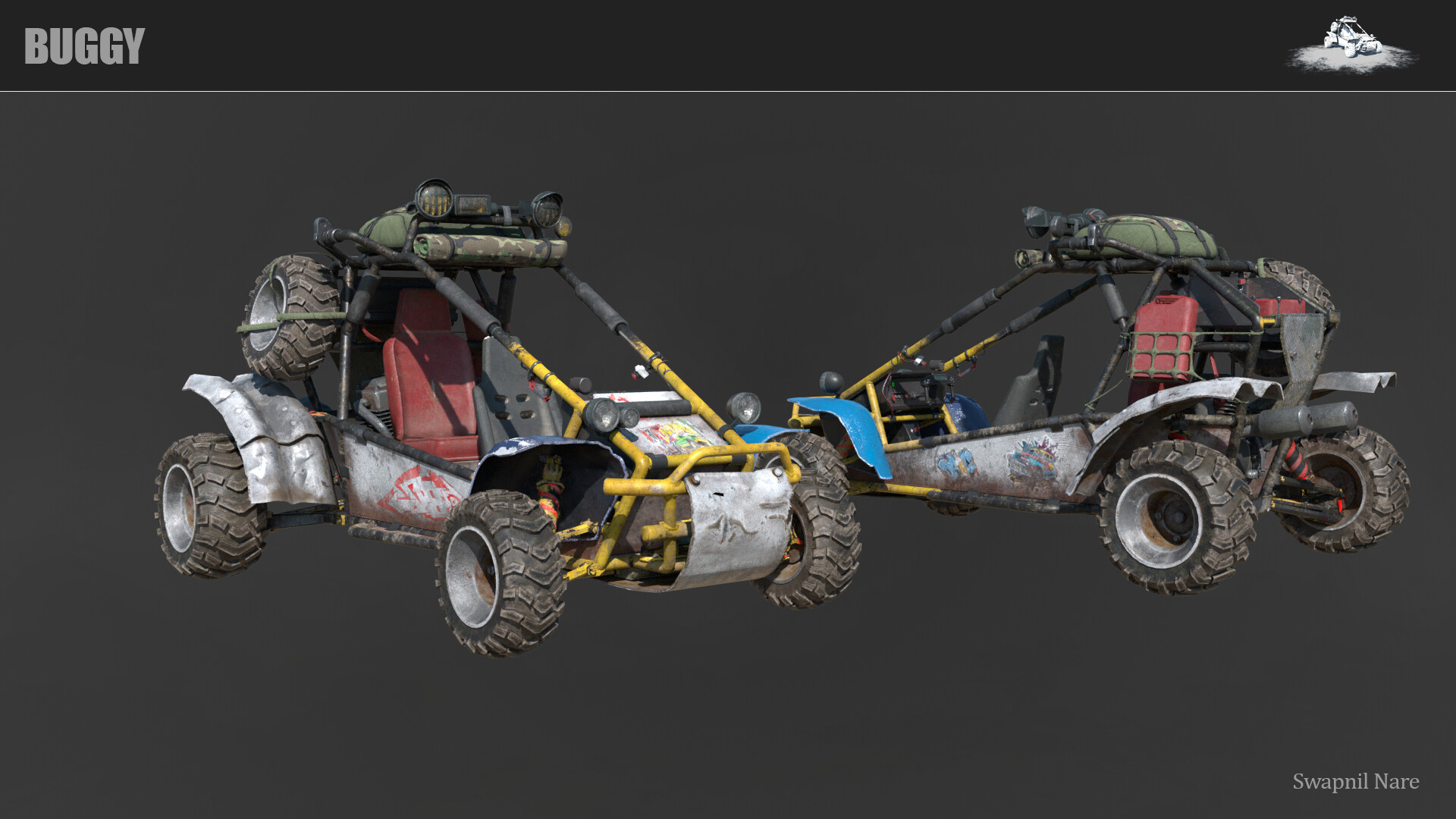

Substance 3D Painter was used for all PBR materials with a layered approach: base metal, edge wear, dirt accumulation, and rust built in separate mask groups for maintainability.
Key Highlights
- 43,970 faces / 75,778 triangles — production-appropriate density
- 8 × 2048 texture sets (albedo, normal, ORM)
- Layered PBR material approach for maintainability
- Clean UV layout with minimal stretching and efficient texel density
Technical Specs
Polycount43,970 faces (75,778 Tris)
Texture Sets8 × 2048 (normal, albedo, ORM)
ModellingBlender
TexturingSubstance 3D Painter
RenderingMarmoset Toolbag
